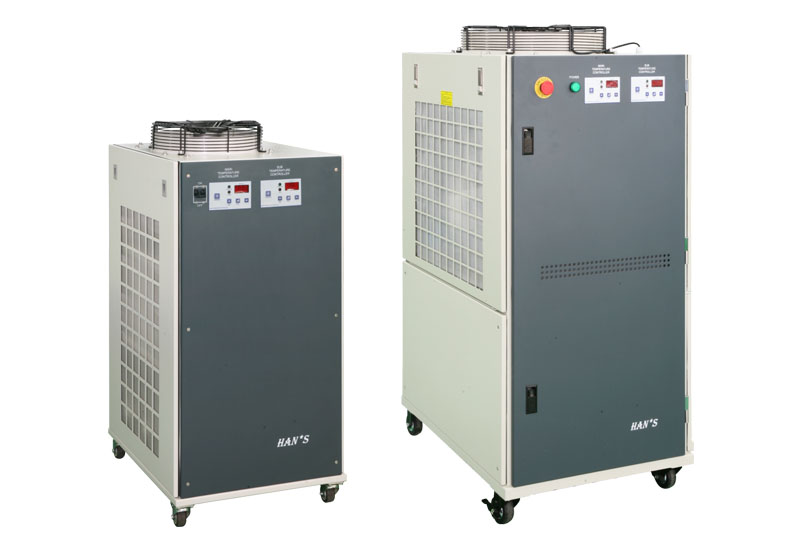

HC025M(SW) ~ HC200M(SW) Double-temperature Series
Product features
Multiple temperature control precisions to satisfy different demands: ±0.1℃, ±1.0℃, ±2.5℃
Double-temperature double-circulation system, with each separately controlled temperature channel (temperature of the secondary channel must be higher than that of primary channel)
High-efficiency plate heat exchanger or anti-corrosion titanium tube heat exchanger
Outer-rotor fan, integrated air cooling (optional water cooling), upward air outlet mode
Liquid level alarm, flow alarm, temperature alarm, phase sequence alarm, pressure alarm, and fault alarm
Flow alarm, temperature alarm, and temperature-ready signal output (optional)
Records of operating time and start/stop times of main parts (optional)
Externally controlled start/stop (optional)
Heating function, rapid temperature rise at low temperature (optional)
Stainless-steel pump, PE water tank; the water circulation system does not contain copper, aluminum and iron, so it will not rust
Fine filtering of circulating water. with the precision at the user's option
Function introduction
The HC025M ~ HC200M Double-temperature Series Water Chiller provides three options of temperature control precision to meet different demands. The water chiller has a refrigeration capacity of 2.5KW~20KW, satisfying cooling requirement of the heat generating equipment with a heating value ≤20KW during long-term operation. The water chiller can be air-cooled or water-cooled; air cooling mode does not need external cooling water, so it is more convenient; water cooling mode will discharge the heat to the external environment and will not increase heat to the indoor environment; each mode has its advantages and disadvantages.
Scope of application
