Products Product Details

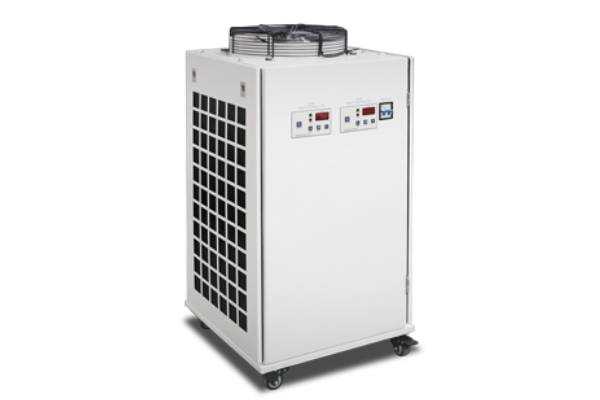

Product name: Air Cooled Chillers HC-0.5K~HC-4K Series
Listing Date:2025-02-20
  • Air Cooled Chillers HC-0.5K~HC-4K Series
  • Product features&Features
  • Applications
  • Size & Wind direction
  • Performance & Table
  • Parameter Configuration

The HC-0.5K~HC-4K double-temperature series water chiller provides three options of temperature control precision to meet different demands. The water chiller has a refrigeration capacity of 2.0KW~7.5KW, satisfying cooling requirement of the heat generating equipment with a heating value ≤7.5KW during long-term operation. The water chiller can be air-cooled or water-cooled, air cooling mode does not need external cooling water, so it is more convenient, water cooling mode will discharge the heat to the external environment and will not increase heat to the indoor environment, each mode has its advantages and disadvantages.

Air Cooled Chillers HC-0.5K~HC-4K Series


Scope of Application:

Fiber laser machine 500W/ 1000W/ 2000W/ 4000W/ 6000W/ CNC machine/ High-speed spindle etc.


FAQ:

Q1. What is the minimum order quantity?

A1. ≥1 set of machine. But the price will according to your quantity.

Q2. How is the quality of your products?

A2. Our products are produced in strict accordance with national and international standards. We have CE, ISO certification etc. We strictly test every product before delivery.

Q3. Can you accept customization?

A3. Yes, we accept OEM and ODM.

Q4. What is your voltage?

A4. We accept customer-specific voltages.

Q5. How's your price?

A5. We will give customers the best discounts of factory price.


Air Cooled Chillers HC-0.5K~HC-4K Series

Items

HC-0.75K/0.5K-01A

HC-1K/0.75K-01A

HC-1.5K/1K-01A

HC-2K/1.5K-01A

HC-3K/2K-01A

HC-4K/3K-21A

Cooling capacity

2.0KW

3.0KW

4.0KW

5.0KW

6.0KW

7.5KW

Refrigerant

R22

Power supply

220V/ 1PH/ 50Hz

380V/ 3PH/ 50Hz

Rated power/ Current (cooling)

1550W/ 7.1A

2760W/ 12.5A

3105W/ 14.1A

3700W/ 16.8A

7500W/ 13.4A

4050W/ 7.3A

Rated power/ Current (heating)

2850W/ 12.9A

2700W/ 12.3A

2700W/ 12.3A

3750W/ 17.1A

6820W/ 12.2A

3780W/ 13.9A

Filter fineness

50μm

Temperature accuracy

±1.0℃

Ambient temperature range

15℃~35℃

Chilled water temperature range

15℃~35℃

Temperature alarm

5℃ low temperature alarm, 40℃ high temperature alarm

Flow alarm (LPM)

3.0±20% low temperature, 0.7±20% high temperature

5.0±20% low temperature, 0.7±20% high temperature

Max. pump flow (LPM)

58.3 low temperature, 10 high temperature

Max. pump lift

28m low, 24m high

38m low, 32m high

48m low, 32m high

Circulating water outlet joint

φ13mm barb connector

φ20mm barb connector

φ25mm barb connector

Circulating water return joint

φ13mm quick connector

φ13mm barb connector

Tank volume

13L low, 4.5L high

19L low, 6.5L high

35L low, 6L high

Power connector definition

Pin 1: PE, Pin 2: L, Pin 3: L2, Pin 4: L3, Pin 5: N.

Signal connector definition

Pin 1&2: start/stop, Pin 3&4: flow temperature alarm, Pin 5&6: temperature ready, Pin 7/8/9/10: NC.

Dimension LxWxH (mm)

430x550x955

500x500x1010

605x775x1195

Machine weight

92KG

105KG

150KG

155KG

170KG


The HC-0.5K~HC-4K double-temperature series water chiller provides three options of temperature control precision to meet different demands. The water chiller has a refrigeration capacity of 2.0KW~7.5KW, satisfying cooling requirement of the heat generating equipment with a heating value ≤7.5KW during long-term operation. The water chiller can be air-cooled or water-cooled, air cooling mode does not need external cooling water, so it is more convenient, water cooling mode will discharge the heat to the external environment and will not increase heat to the indoor environment, each mode has its advantages and disadvantages.
