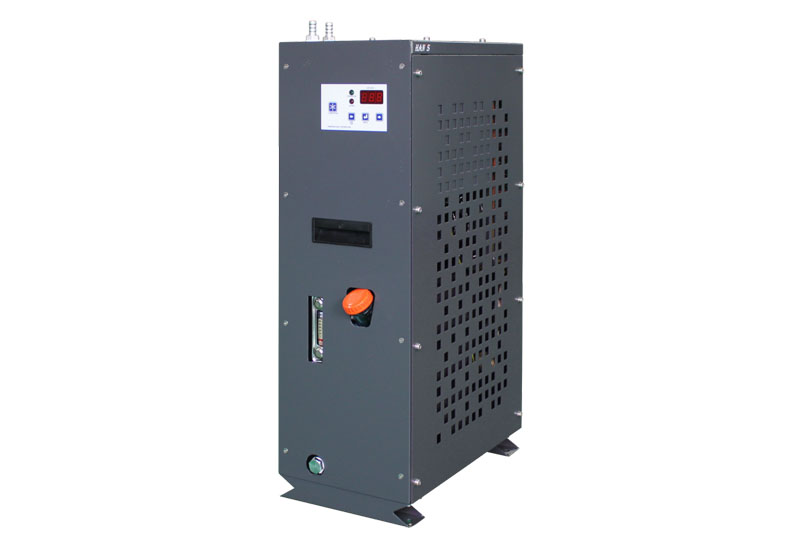

HCY015 ~ HCY025 Series

Product features

• Applicable to 3# ~10# hydraulic oil

• Integrated structure, easy to install and maintain

• All internal pipes use hydraulic casing pipes, allowing quick dismounting/installation

• Ultra low noise fan, integrated air cooling

• Low-noise, low-vibration design, guaranteeing machining accuracy of the equipment to be cooled

• Mechanical level gauge and thermometer

• Oil filling filter, and oil outlet filter

• Record of operating time, start/stop times of main parts

• Externally controlled start/stop function

• Heating function, rapid temperature rise at low temperature environment (optional)

• Ambient temperature monitoring function, automatically control oil temperature

Function introduction

• The HCY015 ~ HCY025 Series Oil Cooler provides thermostatic (±1.0℃) circulating oil, satisfying long-term steady cooling requirement of the heat generating equipment with a heat load less than 2500W.

Scope of application

• Cooling of spindle of CNC machining equipment, cooling of hydraulic equipment, cooling of cutting oil
