Products Product Details

Your location： Home - Products Center - Water Chiller – Air Cooled Chiller

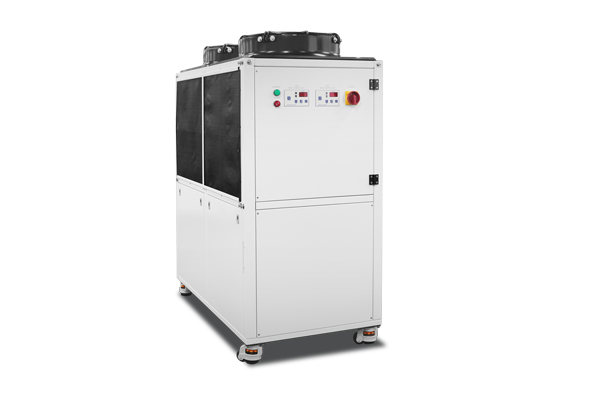

Product name： Air Cooled Chillers HC-6K~HC-20K Series

Listing Date：2025-02-20

Product features&Features
Applications
Size & Wind direction
Performance & Table
Parameter Configuration

The HC-6K~HC-20K double-temperature series water chiller provides three options of temperature control precision to meet different demands. The water chiller has a refrigeration capacity of 14KW~57.5KW, satisfying cooling requirement of the heat generating equipment with a heating value ≤57.5KW during long-term operation. The water chiller can be air-cooled or water-cooled, air cooling mode does not need external cooling water, so it is more convenient, water cooling mode will discharge the heat to the external environment and will not increase heat to the indoor environment, each mode has its advantages and disadvantages.

Air Cooled Chillers HC-6K~HC-20K Series

Scope of Application:

Fiber laser machine 500W/ 1000W/ 2000W/ 4000W/ 6000W/ CNC machine/ High-speed spindle etc.

FAQ:

1. How long is the warranty?

A: within one year from the date of the factory, if the parts are faulty or damaged (due to quality problems, except wearing parts), our company will provide these parts free of charge.

2. How long is your lead time?

A: We have some in stock. But if it takes about 7-10 working days to produce a set of equipment for a normal machine, it takes about 20-25 working days to produce one or more containers. The customized products will take about 30 working days. You need to negotiate the exact delivery time with our sales manager, which depends on your product quantity and product type.

3. Are you a factory or a trading company?

A: We are a factory specializing in water chillers. We offer a wide range of industrial chillers to meet any equipment’s cooling need.

Air Cooled Chillers HC-6K~HC-20K Series

Items	HC-6K/4K-23A	HC-8K/6K-23A	HC-12K10K/8K-23A	HC-15K/12K10K-23A	HC-20K/15K-23A	HC-20K/15K-23A
Cooling capacity	14KW	18KW	28.5KW	36.5KW	45.5KW	57.5KW
Refrigerant	R407c
Power supply	380V/ 3PH/ 50Hz					380V/ 3PH/ 50Hz
Rated power/ Current (cooling)	7.5KW/ 13.4A	8.9KW/ 15.8A	13.8KW/ 25.2A	15.9KW/ 28.9A	20.0KW/ 36.3A	24.1KW/ 43.0A
Rated power/ Current (heating)	6.8KW/ 12.2A	8.3KW/ 14.8A	11.0KW/ 18.7A	11.0KW/ 18.7A	11.0W/ 18.7A	11.0W/ 18.7A
Filter fineness	50μm				1.5mm
Temperature accuracy	±1.0℃
Temperature range	10℃~40℃
Temperature alarm	5℃ low temperature alarm, 40℃ high temperature alarm
Flow alarm (LPM)	10/ 0.7	10/ 0.7	20/ 1.5	40/ 1.5	60/ 1.5	60/ 1.5
Max. pump flow (LPM)	117/ 58	117/ 58	233/ 58	233/ 58	233/ 58	233/ 58
Max. pump lift	58/ 56	58/ 56	54/ 56	54/ 56	64/ 56	64/ 56
Connector main circuit (low temp.)	φ25mm barb connector		φ32mm barb connector		G 1-1/2”
Connector sub circuit (high temp.)	φ13mm barb connector		φ13mm barb connector		G 3/4”
Tank volume	65L/ 6L	100L/ 20L	90L/ 20L	100L/ 20L	160L/ 40L	200L/ 40L
Power pin definition	L1\L2\L3: live wire, N: neutral wire, PE: earth wire.
Control pin definition	1.2: run/ stop control in, 3.4: system error state out
Dimension LxWxH (mm)	935x755x1465	826x1035x1756	720x1035x1615	775x1605x1705	900x1850x1885	1050x2000x1965
Machine weight	205KG	350KG	420KG	480KG	650KG	720KG
